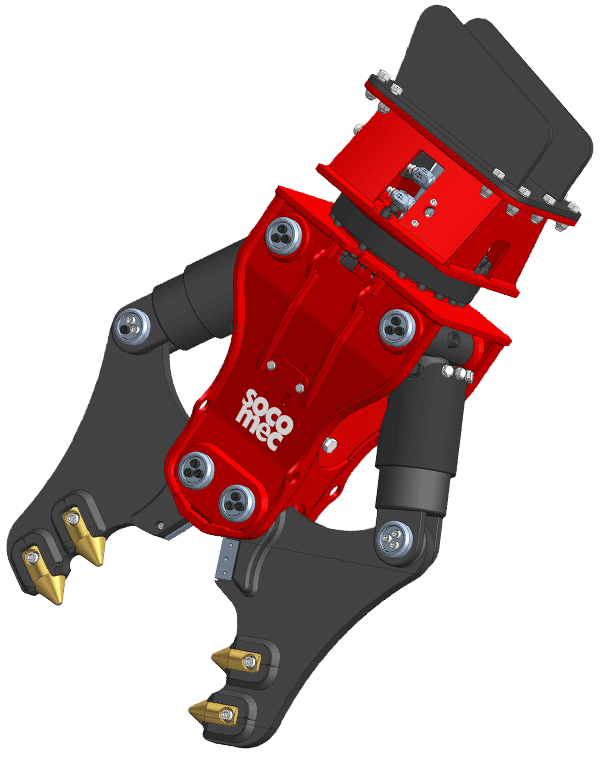

PDOs are primary demolition crushers, equipped with interchangeable teeth and robust blades for cutting reinforced concrete. Each model is equipped with accelerating valves, to increase the opening speed, and safety valves.
MODEL |
PDO 100 |
PDO 250 |
PDO 350 |
PDO 550 |
PDO 1150 |
PDO 1850 |
PDO 2300 |
PDO 2850 |
|
| Crusher weight | Kg | 100 | 270 | 350 | 640 | 1150 | 1850 | 2300 | 2850 |
| A | B | mm | 265/245 | 290/285 | 365/335 | 460/380 | 685 | 820 | 890 | 1090 |
| X | Y | ton | 14/30 | 18/55 | 22/70 | 30/100 | 45/160 | 60/230 | 70/270 | 75/285 |
| Working pressure | bar | 180 | 200 | 230 | 250 | 310 | 310 | 310 | 310 |
| Oil flow | l/min | 10/20 | 20/40 | 40/60 | 60/90 | 150/250 | 180/250 | 200/300 | 250/350 |
| Rotation | free | 360° | 360° | 360° | 360° | 360° | 360° | 360° | |
| Press. max rot. | bar | – | 200 | 250 | 250 | 140 | 140 | 140 | 140 |
| Rotation oil flow | l/min | – | 30 | 50 | 15 | 10 | 10 | 10 | 10 |
